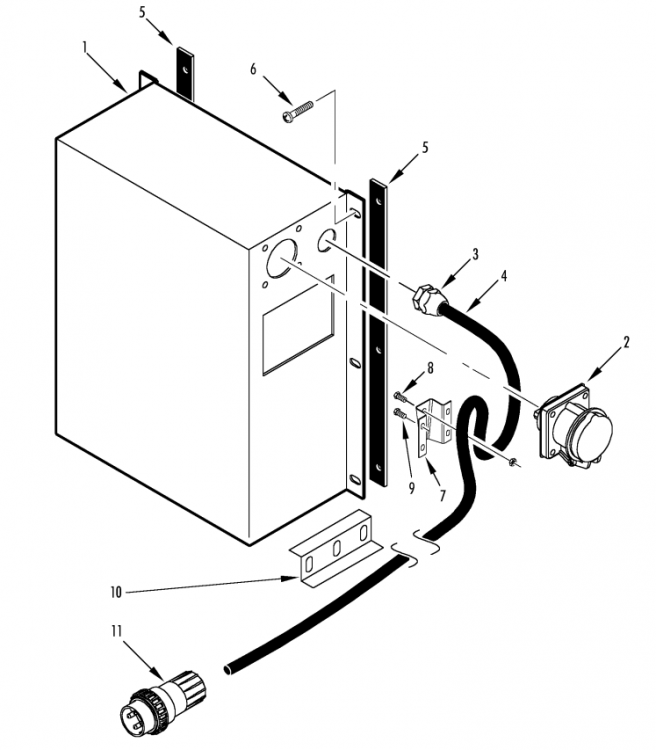

TRANSFORMER GROUP (098024, 098040, 098041, 098043, 098071, 098123, 098128)

$8,658.54

Description :

A-0059

ref

part-no

Clear

A-0059

REF	PART NO.	DESCRIPTION	QTY
1	451859	TRANSFORMER	1
2	411977	RECEPTACLE – power (32A, 440V)	1
2	552995	* SCREW – receptacle	4
2	552964	* LOCKWASHER	2
2	552001	* FLATWASHER	2
3	555919	* CONNECTOR – grip	1
3	552636	* NUT – connector	1
4	413083	* CABLE – power (69 ft)	1
5	919508TKA	INSULATOR	2
6	557341	SCREW – transformer	2
6	558891	SCREW – transformer	4
6	557085	FLATWASHER	6
6	557342	LOCKWASHER	6
7	916988	BRACKET – cable restraint (current units)	1
8	559164	SCREW – cable	1
8	557357	FLATWASHER	1
8	557344	NUT	1
9	557172	SCREW – bracket	4
9	557075	FLATWASHER	4
9	557170	LOCKWASHER	4
10	913238	BRACKET – cable (early units)	1
10	557172	SCREW – bracket	3
10	556995	FLATWASHER	6
10	557042	NUT	3
11	443828	PLUG – power (50A)	1
11	445133	PLUG – power (60A, orange)	1
11	413429	PLUG – power (50A, blue)	1
11	332482	BUSHING – plug	1
