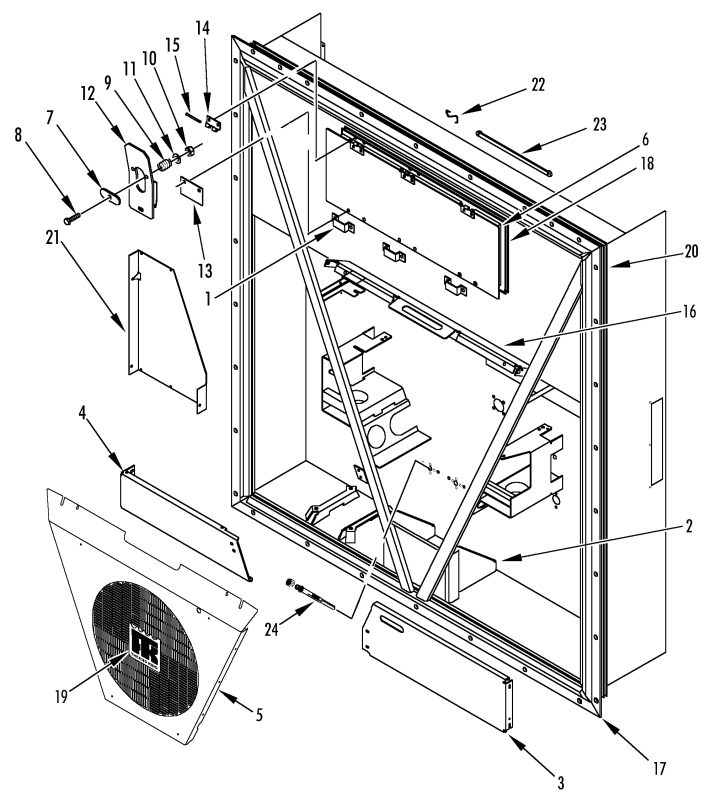

CONDENSER COMPONENTS (20ft CONTAINER, THREE FANS)

$11,952.07

Description :

A-0021

ref

part-no

Clear

A-0021

REF	PART NO.	DESCRIPTION	QTY
1	918195	KEEPER – door latch	3
1	559312	SCREW – keeper (TIR seal)	6
1	556995	WASHER	6
1	559054	WASHER (nylon)	6
1	558877	WASHER (nylon)	6
2	918108	BRACKET – frame	1
2	556993	SCREW – bracket	3
2	556988	WASHER	6
2	559541	WASHER (nylon)	6
2	559380	NUT [ASK FOR QUOTE]	3
3	916560	PLATE – cable storage (front)	1
3	559168	NUT	2
3	559054	WASHER (nylon)	6
3	556994	SCREW – plate	2
3	556695	FLATWASHER	6
3	558933	WASHER (nylon)	6
4	918474	PLATE – guard	1
4	557341	SCREW – plate (20 mm)	2
4	556993	SCREW – plate (25 mm)	2
4	557339	NUT	6
4	558904	FLATWASHER	6
4	558953	WASHER – insulation [ASK FOR QUOTE]	6
5	985925	GRILLE – condenser	1
5	556994	SCREW – grille	4
5	556995	FLATWASHER	4
5	559054	WASHER (nylon)	4
6	5090755	DOOR – evaporator	1
6	922995	HINGE – evap door	3
6	510620TKA	RIVET – hinge	12
7	919040TKA	KNOB	3
8	557035	SCREW – door	3
9	918199	SPRING	3
10	557354	NUT	3
11	559054	WASHER (nylon)	3
12	919041TKA	LATCH – door	3
12	552864	RIVET – latch	6
13	918134	INSULATOR – latch	6
14	5091654	HINGE	3
14	559313	SCREW – hinge (TIR seal)	6
14	559541	WASHER (nylon)	6
15	918256TKA	PIN – hinge (w/ snap)	3
16	920891	BRACKET – safety hook	1
16	556993	SCREW – bracket	4
16	557085	WASHER	8
16	559541	WASHER (nylon)	8
17	986563	FRAME – condenser	1
18	333968	GASKET – evaporator door	1
19	919511TKA	NAMEPLATE – TK	1
20	332983	GASKET – unit	1
21	918728	COVER (instead of thermometer)	1
21	557391	SCREW – cover	3
21	556988	FLATWASHER	3
22	919039	HOOK – strap	1
22	553065	CLAMP – hook	1
22	559166	SCREW – clamp	1
23	5090937	STRAP – door	1
23	559173	SCREW – strap	1
23	557089	FLATWASHER	2
24	919754	POCKET – sensor	2
