CRR 40 Deep Freeze

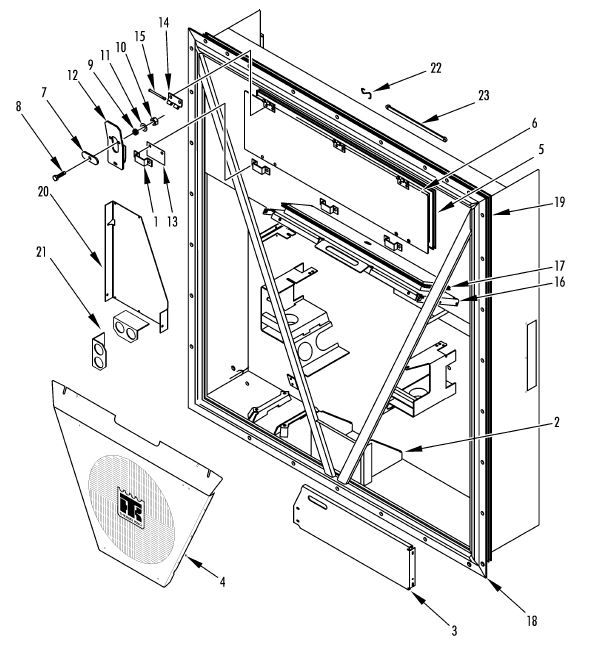

STRUCTURAL COMPONENTS (Deep Freeze)

$7,332.19

Description :

A-0012

ref

FULL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

part-no

Clear

A-0012

Product Details

REF	PART NO.	DESCRIPTION	QTY
1	91-8195	KEEPER – door latch	3
1	51-1459	SCREW – keeper	6
1	55-6995	WASHER	6
1	55-8933	WASHER (nylon)	6
2	91-8108	BRACKET – frame	1
2	51-1445	SCREW – bracket & plate	7
2	55-6988	WASHER	14
2	55-9541	WASHER (nylon)	14
2	51-1425	NUT	5
3	91-9504	PLATE – cable storage (front)	1
4	98-5925	GRILLE – condenser (see 189C4)	1
5	33-3968	GASKET – evaporator door	1
6	509-755	DOOR – evaporator	1
6	509-1654	HINGE – evap door	3
6	55-2864	RIVET – hinge	6
6	509-1789	SEAL – door	A/R
7	91-9040	KNOB	3
8	55-7035	SCREW – door	3
9	91-8199	SPRING	3
10	51-2078	NUT	3
11	55-8877	WASHER (nylon)	3
12	91-9041	LATCH – door	3
12	55-2864	RIVET – latch	6
13	91-8134	INSULATOR – latch	3
14	509-1654	HINGE	3
14	55-9313	SCREW – hinge	6
14	55-9541	WASHER (nylon)	6
15	91-8256	PIN – hinge (w/ snap)	3
16	98-5199	DOOR – heater section	1
16	51-1460	SCREW – door	8
16	55-9541	WASHER (nylon)	8
16	51-1430	WASHER	8
17	33-3002	GASKET – door (heater section)	1
18	98-5303	FRAME – condenser (foamed)	1
19	33-2983	GASKET – unit	1
20	91-9820	COVER – scroll compressor	1
20	51-1467	SCREW – cover	3
20	51-1444	FLATWASHER	3
20	55-8953	WASHER (nylon)	3
21	91-8637	BRACKET – gauge (see 247D7)	2
22	91-9039	HOOK – strap	1
22	55-3065	CLAMP – hook	1
22	55-7341	SCREW – clamp	1
23	509-937	STRAP – door	1
23	55-9173	SCREW – strap	1
23	55-7089	FLATWASHER	1
