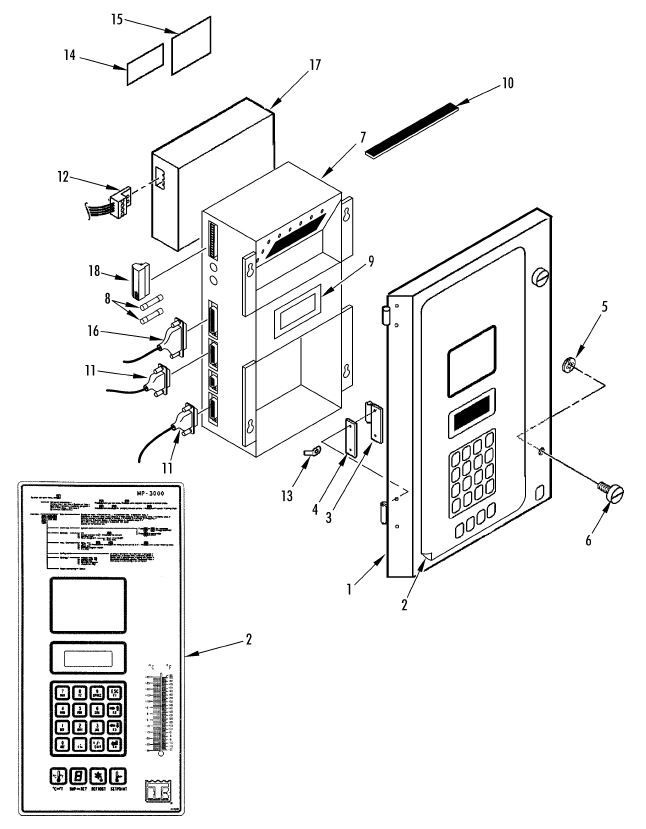

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 91-9380 | DOOR – control box | 1 |
| 2 | 41-4142 | KEYPAD (MP3000) | 1 |
| 3 | 91-9381 | HINGE – door | 2 |
| 3 | 51-1418 | SCREW – hinge | 4 |
| 3 | 55-9444 | WASHER (nylon) | 4 |
| 3 | 51-1420 | WASHER | 8 |
| 3 | 51-1419 | NUT | 4 |
| 4 | 55-9392 | INSULATOR – hinge | 2 |
| 5 | 55-8919 | RETAINER – screw | 2 |
| 6 | 51-1470 | SCREW – door | 2 |
| 7 | 45-2009 | CONTROLLER (MP3000-A) | 1 |
| 7 | 845-2009 | CONTROLLER (reman, MP3000-A) | 1 |
| 8 | 44-6777 | *FUSE (2 amp) | 2 |
| 9 | 41-4919 | *DISPLAY – Controller (REMAN) | 1 |
| 9 | 51-1419 | NUT – controller | 4 |
| 9 | 55-8919 | LOCKWASHER | 2 |
| 9 | 55-9444 | WASHER – insulating (nylon) | 4 |
| 10 | 92-3554 | GASKET – controller | 1 |
| 11 | 41-3602 | CABLE – connecting (25-pin, No. 1 & 3) | 2 |
| 12 | 41-3603 | CABLE – connecting (RMM, option 098158, 098159) | 1 |
| 13 | 55-9395 | ADAPTER – push-on | 1 |
| 13 | 51-1419 | NUT | 1 |
| 14 | 91-9382 | NAMEPLATE – Warning, Power Off | 1 |
| 15 | 92-3446 | NAMEPLATE – Phase Select | 1 |
| 16 | 41-2835 | CABLE – connecting (No. 2) | 1 |
| 17 | 41-3601 | MODEM (RMM) | 1 |
| 18 | 41-3335 | CONNECTOR (7-pin) | 1 |
247D4
247E2
172H8
150B14
