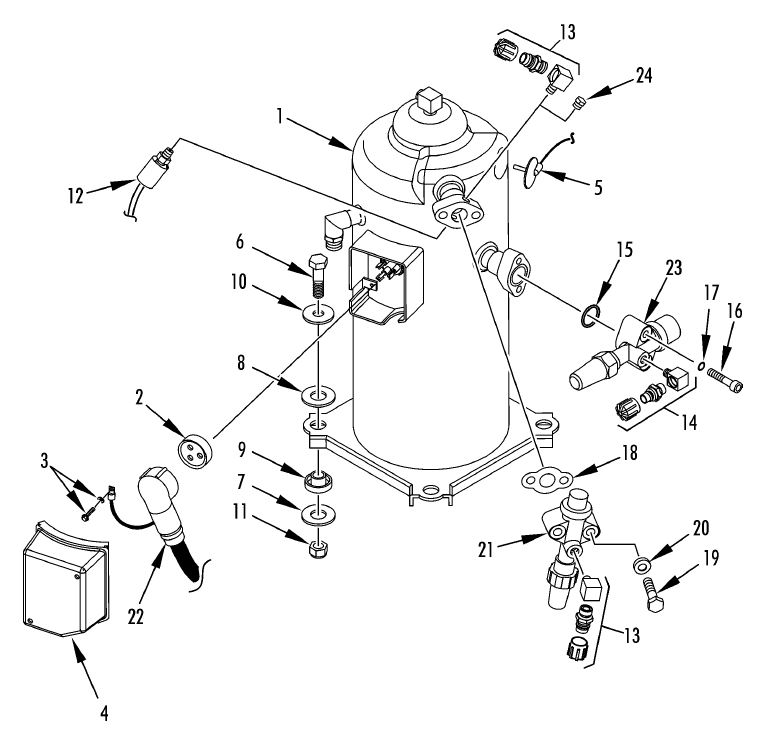

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 102-796 | COMPRESSOR – scroll | 1 |
| 1 | 203-516 | OIL – compressor | A/R |
| 1 | 40-779 | KIT – gasket & grease | 1 |
| 2 | 33-2951 | *GASKET – power connector | 1 |
| 2 | 33-2979 | *SEALER – silicone grease pack | 1 |
| 3 | 55-8994 | *SCREW – ground | 1 |
| 3 | 55-8995 | *WASHER – ground | 1 |
| 4 | 91-9021 | *COVER – terminal box | 1 |
| 5 | 40-1377 | *KIT – thermistor | 1 |
| 6 | 51-2081 | SCREW – compressor | 4 |
| 7 | 51-1435 | FLATWASHER (12 mm) | 4 |
| 8 | 55-9012 | WASHER – vibration damper | 4 |
| 9 | 55-9320 | SPACER | 4 |
| 10 | 51-1436 | FLATWASHER (13 mm) | 4 |
| 11 | 51-1434 | NUT | 4 |
| 12 | 41-6224 | SWITCH – hpco | 1 |
| 12 | 203-393 | SEALER – thread (red) | A/R |
| 13 | 66-7812 | ADAPTER – high side | 1 |
| 13 | 66-6610 | FITTING – highside | 1 |
| 13 | 66-7182 | *CAP – fitting | 1 |
| 13 | 203-393 | SEALER – thread (red) | A/R |
| 14 | 66-8054 | ELBOW – low side | 1 |
| 14 | 66-6607 | FITTING – low side | 1 |
| 14 | 66-7183 | *CAP – fitting | 1 |
| 15 | 33-727 | O-RING – suction | A/R |
| 16 | 51-1438 | SCREW – suction valve | 1 |
| 17 | 51-1429 | LOCKWASHER | 1 |
| 18 | 33-2805 | GASKET – flange | 1 |
| 19 | 51-1437 | SCREW – discharge valve | 2 |
| 20 | 51-358 | WASHER – sealing | 2 |
| 21 | 61-2119 | VALVE – discharge | 1 |
| 22 | 40-782 | KIT – power cord | 1 |
| 23 | 61-2118 | VALVE – suction | 1 |
| 24 | 55-3364 | PLUG – fusible | 1 |
247D5
189C4
150B14
