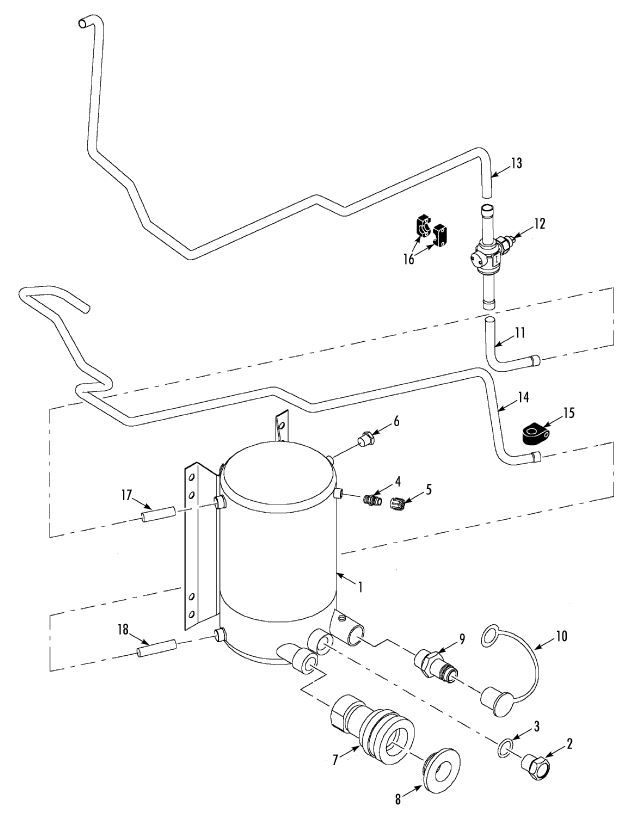

WATER COOLED CONDENSER

$13,310.77

Description :

A-0055

ref

part-no

Clear

A-0055

REF	PART NO.	DESCRIPTION	QTY
1	671575	TANK – water cooled condenser (see 154E13)	1
2	668811	INDICATOR	1
3	333007	O-RING	1
4	666610	FITTING – high side	1
5	667182	* CAP – fitting	1
6	5060364	PLUG – fusible	1
6	2030393	SEALER – locking	A/R
6	511467	SCREW – tank	4
6	511429	LOCKWASHER	4
6	511430	FLATWASHER	4
7	664788	COUPLING – outlet	1
7	2030385	SEALER – thread	A/R
8	916627	CAP – dust cover	1
9	551827	PLUG – outlet	1
10	916628	CAP – dust cover	1
11	613504	TUBE – condenser to filter	1
12	613525	VALVE – ball	1
13	613542	TUBE – valve to dehydrator	1
14	611305	TUBE – condenser to condenser	1
15	910759	CLAMP – tube	2
15	511462	SCREW – clamp	1
16	556730	CLAMP – tube	6
16	557035	SCREW – clamp	2
16	557075	FLATWASHER	4
17	667543	TUBE – stub (1.88 lg)	1
18	669447	TUBE – stub (2.25 lg)	1
