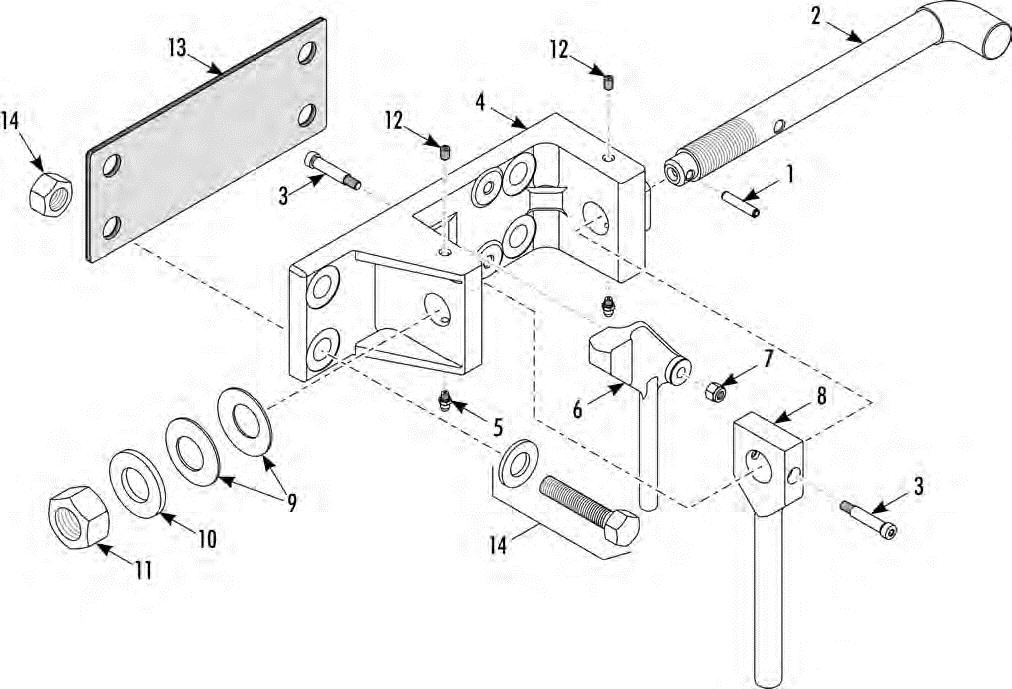

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 913161 | BRACKET (lefthand) | 0 |
| 1 | 913162 | BRACKET (righthand) | 0 |
| 1 | 552925 | * PIN – spring (slotted) | 0 |
| 2 | 913160 | * SHAFT – clamp | 0 |
| 3 | 556030 | * SCREW – shoulder | 0 |
| 4 | 910112TKA | * BASE – clamp | 0 |
| 5 | 554021 | * FITTING – grease | 0 |
| 5 | 552155 | * SCREW – set | 0 |
| 5 | 2030386 | GREASE | 0 |
| 6 | 910114 | * PAW – clamp | 0 |
| 7 | 554118 | * NUT | 0 |
| 8 | 910113TKA | * HANDLE – clamp | 0 |
| 9 | 556028 | * WASHER – spring | 0 |
| 10 | 556029 | * WASHER – special | 0 |
| 11 | 556027 | * NUT | 0 |
| 12 | 552155 | * SCREW – set | 0 |
| 13 | 912382 | SPACER – bracket | 0 |
| 14 | 512619 | SCREW – bracket | 0 |
| 14 | 554767 | FLATWASHER | 0 |
| 14 | 555418 | NUT | 0 |
223G6
226E2
130G3
204F5
