STRUCTURAL COMPONENTS

$20,669.78

Description :

A-0081

ref

part-no

Clear

A-0081

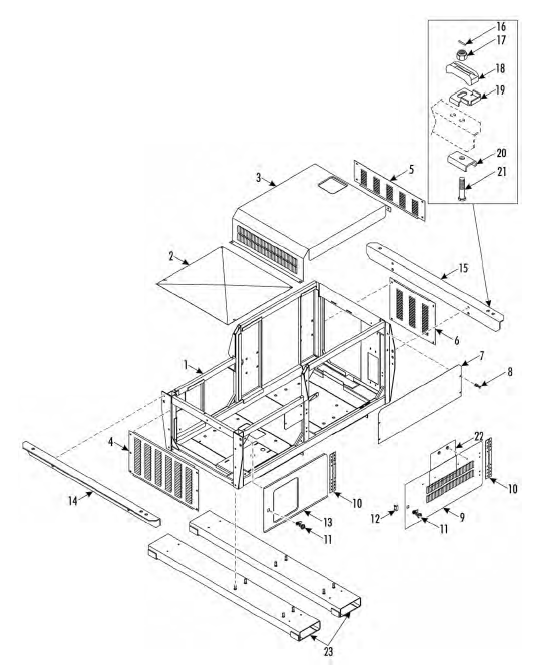

REF	PART NO.	DESCRIPTION	QTY
1	987364	FRAME – assembly (w/ welded fork pockets)	1
1	987337	FRAME – assembly (Maersk blue,w/ welded fork pockets)	1
1	987367	FRAME – assembly (Toyo, w/ welded fork pockets)	1
2	987204	PANEL – top, rear	1
3	987202	PANEL – top	1
3	987344	PANEL – top (Maersk blue)	1
4	987822	PANEL – lower, rear	1
4	987347	PANEL – lower, rear (Maersk blue)	1
5	987206	PANEL – front	1
6	987208	PANEL – radiator	1
6	987340	PANEL – radiator (Maersk blue)	1
7	987207	PANEL – upper right	1
7	987341	PANEL – upper right (Maersk blue)	1
8	557731	SCREW – door	A/R
8	551800TKA	LOCKWASHER	A/R
8	554742	WASHER – special	A/R
8	511170TKA	WASHER – nylon	A/R
8	556721	INSERT – threaded	A/R
9	987859	DOOR – front right	1
10	926380	HINGE – door	2
11	920260TKA	LATCH – door (includes nut)	2
12	926306	BRACKET – latch	1
12	553027	SCREW – bracket	4
12	551800TKA	LOCKWASHER	4
12	552001	FLATWASHER	4
13	987860	DOOR – rear right	1
13	987903	PANEL – rear right (Maersk blue)	1
14	925403	ANGLE – unit mounting (rear)	1
15	985514	ANGLE – unit mounting (front)	1
15	555204	SCREW – angle	8
15	552576	FLATWASHER	16
15	555205	NUT	8
16	511654	PIN – spring	4
17	554470	NUT	4
18	923438	CLIP – unit mounting	4
19	926720	BRACKET – clip	4
20	910632TKA	CHANNEL – unit mounting	4
21	513159	BOLT – unit	4
21	557731	SCREW – hinge	8
21	551587	SCREW – hinge (hh)	8
21	554953	NUT	8
21	551800TKA	LOCKWASHER	16
22	926389	POUCH – service information and records	1
22	919447TKA	SUPPORT – pouch	1
22	551587	SCREW – pouch	2
22	552086	FLATWASHER	2
22	554953	NUT	2
23	925307	POCKET – fork (Maersk blue)	2
23	552173	FLATWASHER	8
23	554952	NUT	8
