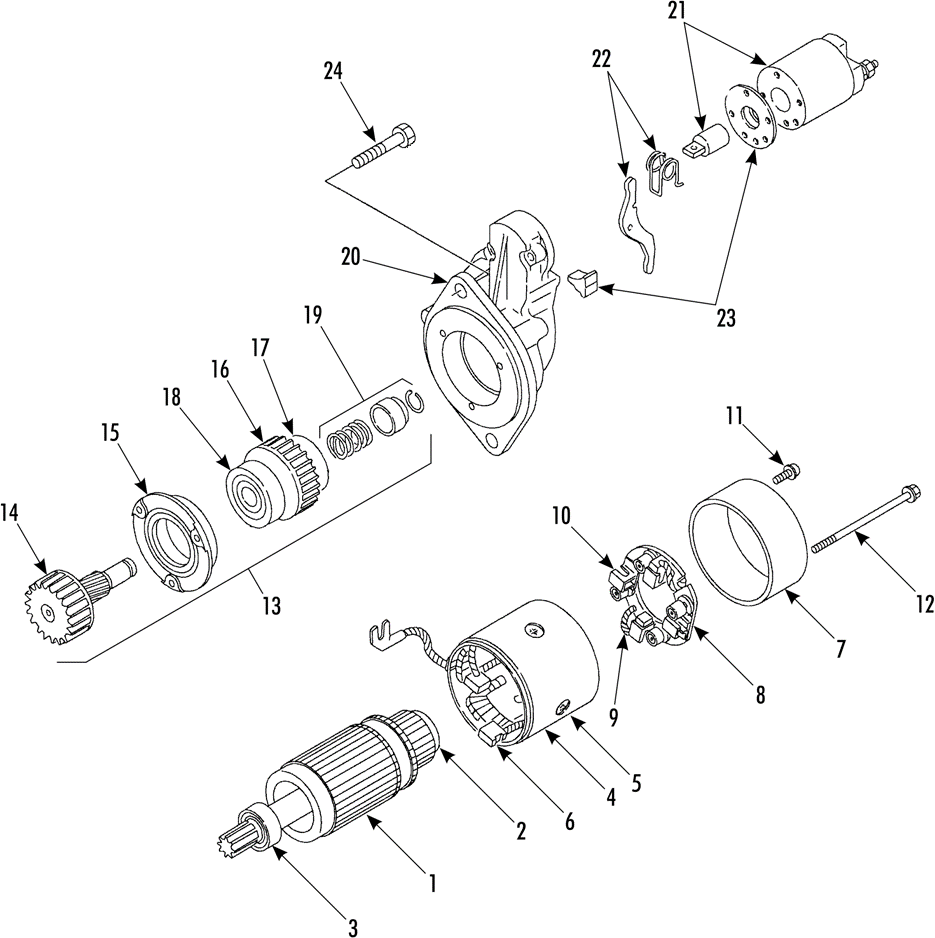

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 452177 | STARTER (12V) | 1 |
| 1 | 452324 | STARTER – standard life plus | 1 |
| 1 | 8452324 | STARTER – remanufactured | 1 |
| 1 | 416508 | * ARMATURE (12V) | 1 |
| 2 | 772468 | * BEARING | 1 |
| 3 | 772469 | * BEARING | 1 |
| 4 | 416509 | * YOKE – assembly | 1 |
| 5 | 558894 | ** SCREW – field coil | 4 |
| 6 | 416510 | ** BRUSH – positive (not for 24V) | 2 |
| 7 | 416513 | * COVER – rear | 1 |
| 8 | 416511 | * HOLDER – brush (not for 24V) | 1 |
| 9 | 416512 | ** SPRING – brush | 4 |
| 10 | 416510 | ** BRUSH (not for 24V) | 2 |
| 11 | 558897 | * SCREW – cover | 2 |
| 12 | 511161TKA | * BOLT – thru, cover | 2 |
| 13 | 416518 | * PINION – assembly | 1 |
| 14 | 416519 | ** SHAFT – pinion | 1 |
| 15 | 772833 | ** RETAINER | 1 |
| 16 | 416520 | ** CLUTCH – assembly | 1 |
| 17 | 416521 | *** BEARING – ball | 1 |
| 18 | 772834 | *** BEARING – ball | 1 |
| 19 | 412156 | ** STOPPER – pinion | 1 |
| 20 | 416514 | * CASE – cover | 1 |
| 21 | 416515 | * SOLENOID (12V) | 1 |
| 22 | 416516 | * LEVER | 1 |
| 23 | 416517TKA | * COVER – dust | 1 |
| 24 | 558898 | SCREW – starter | 2 |
2030733
314H4
209C4
222G9
