RECORDING THERMOMETER (OPTION 098026 & 098030)

$1,753.13

Description :

A-0057

ref

part-no

Clear

A-0057

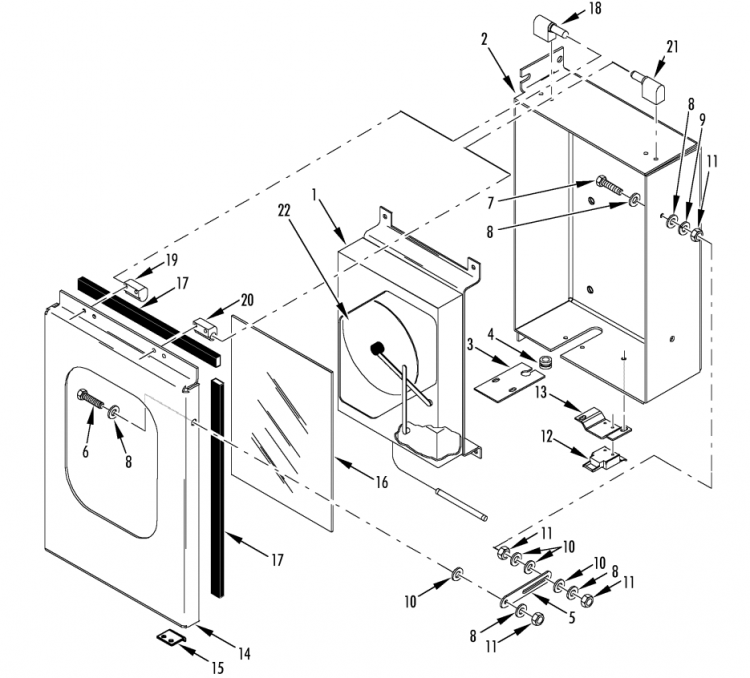

REF	PART NO.	DESCRIPTION	QTY
1	451830	THERMOMETER – recording (31 day, Partlow, 098025, see 147B2)	1
1	451831	THERMOMETER – recording (31 day, Saginomiya, battery, 098026, see 147B9)	1
1	451832	THERMOMETER – recording (31 day, Saginomiya, AC power, 098030, see 147B9)	1
1	557172	SCREW – recorder	4
1	556996	LOCKWASHER	4
1	556995	FLATWASHER	4
2	918705	BOX – recorder	1
2	557341	SCREW – box	4
2	556988	FLATWASHER	4
2	558953	WASHER (nylon)	4
3	914218TKA	PLATE – box (bottom)	1
3	557340	SCREW – plate	2
3	557033	FLATWASHER	4
3	557404	LOCKWASHER	2
3	557354	NUT	2
4	330451	GROMMET	1
5	997230	GUIDE – latch	1
6	557169	SCREW – guide (12 mm)	1
7	558720	SCREW – guide (25 mm)	1
8	557033	FLATWASHER	4
9	557464	LOCKWASHER	1
10	559444	WASHER – insulating (nylon)	4
11	557034	NUT	4
12	915005	LATCH – cover	1
12	552988	RIVET – latch	2
13	915006	BRACKET – latch	1
13	557340	SCREW – bracket	2
13	557033	FLATWASHER	4
13	557404	LOCKWASHER	2
13	557354	NUT	2
14	985532	COVER – recorder (includes 15, 16 & 17)	1
15	915007	* PLATE – keeper	1
15	552988	* RIVET – plate	2
16	918707	* WINDOW	1
17	333008	* GASKET – cover	4
17	914219	HINGE SET – left	1
18	918708	* HINGE – right (w/ pin)	1
19	918725	* HINGE – right (w/o pin)	1
20	918726	* HINGE – left (w/o pin)	1
21	918709	* HINGE – left (w/ pin)	1
21	557169	SCREW – hinge	8
21	557033	FLATWASHER	8
21	557404	LOCKWASHER	8
21	914220TKA	HINGE SET – right	1
22	2030180	CHART (31 day, -20 to +80 F, box of 50)	1
22	2030252	CHART (31 day, -30 to +25 C, box of 50)	1
22	2030219	CHART (31 day, -25 to +25 C, box of 50)	1
