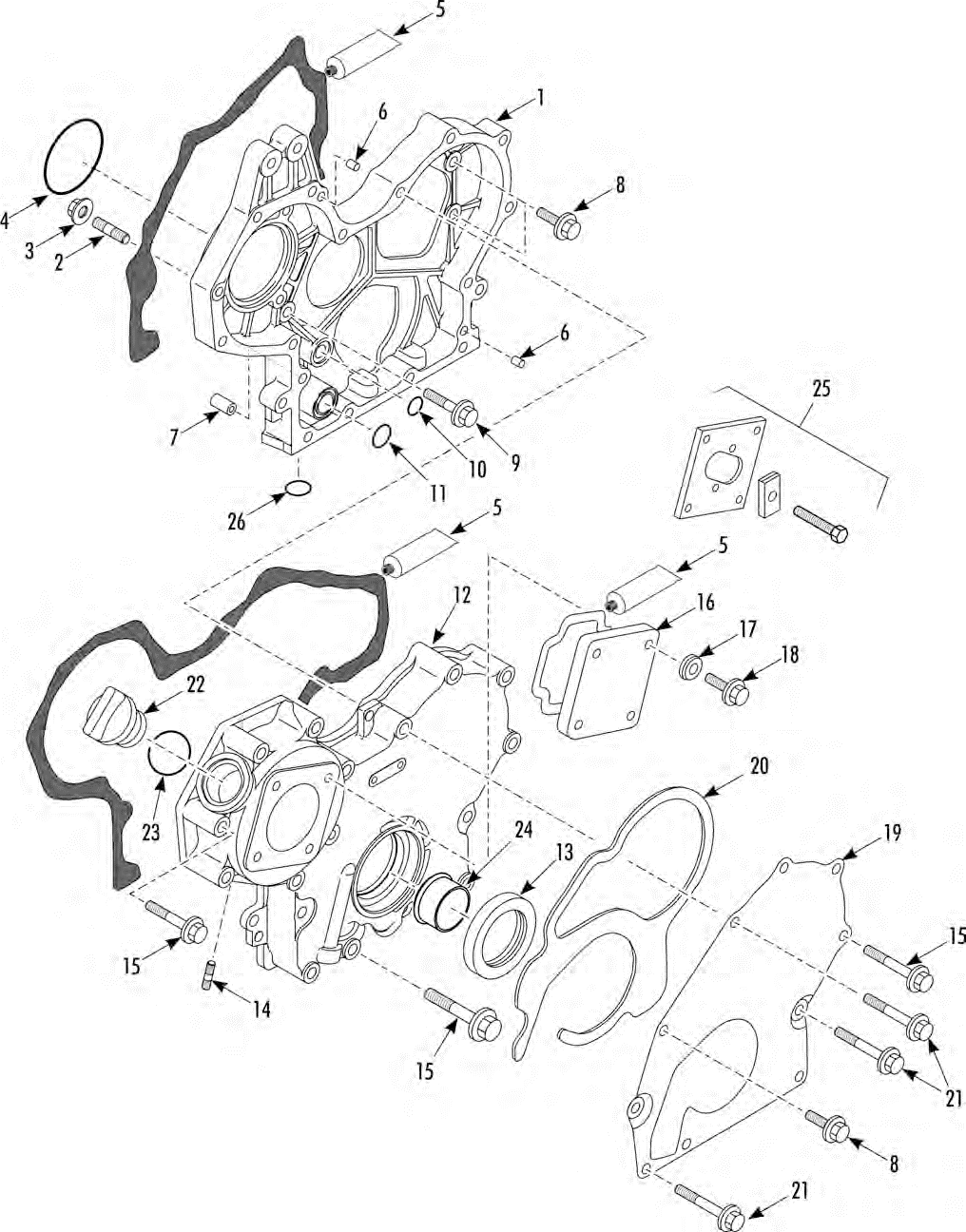

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 130319 | CASE – gear | 1 |
| 2 | 511146 | STUD – injection pump | 3 |
| 3 | 510594 | NUT | 3 |
| 4 | 331953 | O-RING – injection pump | 1 |
| 5 | 2030348 | GASKET – adhesive | A/R |
| 6 | 555816 | PIN – dowel | 2 |
| 7 | 556234 | PIN – dowel | 2 |
| 8 | 558441 | SCREW – case (16 mm) | 3 |
| 9 | 555809 | SCREW – case (45 mm) | 1 |
| 10 | 333821TKA | O-RING – gear case (16 mm) | 1 |
| 11 | 334089TKA | O-RING – gear case (20 mm) | 1 |
| 12 | 130322 | COVER – gear case | 1 |
| 13 | 334088 | * SEAL – oil | 1 |
| 14 | 556367 | * STUD – fuel pump | 3 |
| 15 | 556236 | SCREW – cover (55 mm) | 8 |
| 16 | 115082 | COVER | 1 |
| 17 | 554622TKA | WASHER – sealing | 4 |
| 18 | 558854TKA | SCREW – cover (12 mm) | 4 |
| 19 | 130321 | COVER – sound shield | 1 |
| 20 | 334087 | GASKET – cover | 1 |
| 21 | 556237 | SCREW – cover (85 mm) | 7 |
| 22 | 115091 | CAP – oil fill | 1 |
| 23 | 331954 | O-RING – cap | 1 |
| 24 | 119592 | SPEEDI SLEEVE – front seal | 1 |
| 25 | 2041011 | TOOL – injection pump gear remover | 1 |
| 26 | 334089TKA | O-RING | 1 |
