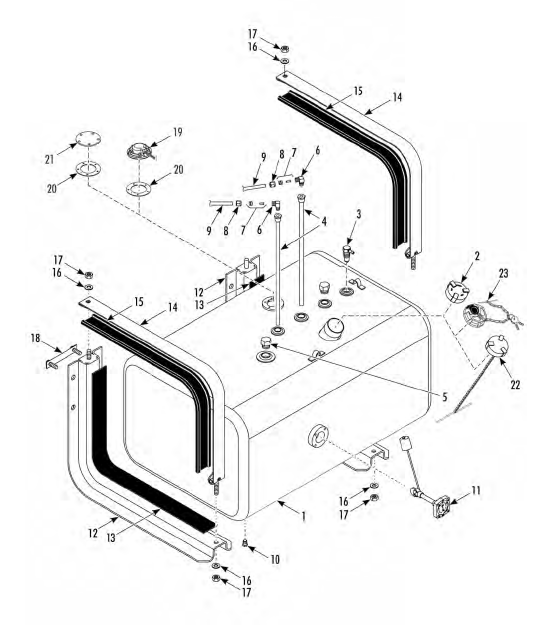

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 120991 | TANK – fuel (aluminum, 50 gallon) | 1 |
| 2 | 130946 | * CAP – fuel tank | 1 |
| 3 | 555617 | * VENT – ball check | 1 |
| 4 | 119087 | * TUBE – fuel feed line | 2 |
| 4 | 2030385 | * SEALER – thread | A/R |
| 5 | 117265 | * PLUG – fuse | 2 |
| 6 | 114959 | * ELBOW (3/8) | 2 |
| 6 | 2030385 | * SEALER – thread | A/R |
| 7 | 100242 | * KIT – sleeve & eyelet (3/8) | 2 |
| 8 | 114941 | * NUT (3/8) | 2 |
| 9 | 114372 | * HOSE – fuel (3/8 od x 35 ft lg) | A/R |
| 10 | 554315 | PLUG – pipe (1/4-18) | 1 |
| 10 | 554761 | PLUG – pipe (1/2-14) | 1 |
| 11 | 130669 | * GAUGE – fuel (display reads E, 1/4, 1/2, 3/4, F) | 1 |
| 11 | 330781 | * O-RING – fuel gauge | 1 |
| 11 | 130936 | * DIAL – fuel gauge | 1 |
| 12 | 984073 | BRACKET – tank | 2 |
| 13 | 913434TKA | * PAD – fuel tank (rubber) | 2 |
| 14 | 984074 | STRAP – tank | 2 |
| 15 | 913435TKA | * EXTRUSION – strap (rubber) | 2 |
| 16 | 552173 | FLATWASHER | 12 |
| 17 | 554952 | NUT | 12 |
| 18 | 913436TKA | BOLTSTRIP – bracket | 4 |
| 19 | 401130 | SENSOR – fuel level | 1 |
| 20 | 333878 | GASKET – fuel sensor | 1 |
| 21 | 927236 | COVER – fuel sensor | 1 |
| 21 | 551510TKA | SCREW – sensor/cover | 5 |
| 21 | 550431 | LOCKWASHER | 5 |
| 21 | 551511 | FLATWASHER | 5 |
| 22 | 130934 | CAP – fuel tank (tamper evident) | 1 |
| 23 | 118053 | CAP – fuel tank (locking) | 1 |
