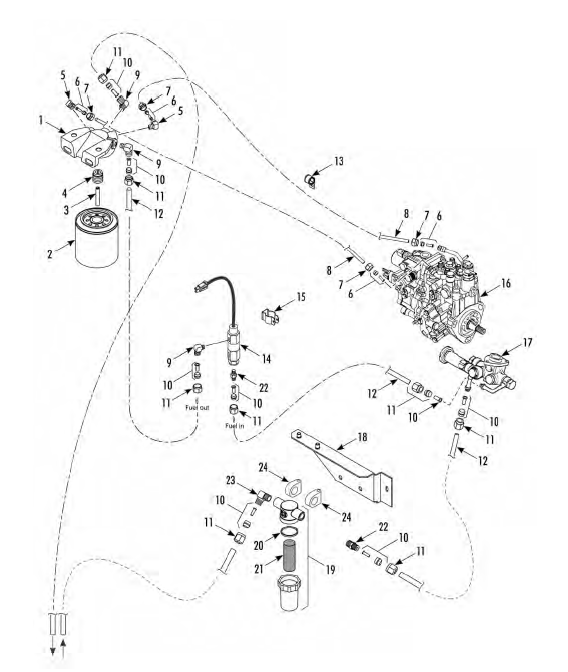

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 119015 | HEAD – fuel filter | 1 |
| 1 | 553490 | SCREW – base | 2 |
| 1 | 554954 | NUT – base | 2 |
| 1 | 552958 | FLATWASHER | 2 |
| 2 | 119342 | FILTER – fuel (EMI 3000) | 1 |
| 3 | 119016 | SHAFT – water bleed | 1 |
| 4 | 119017 | SPUD – fuel filter | 1 |
| 4 | 2030393 | SEALER – thread | A/R |
| 5 | 115320TKA | ELBOW (1/4) | 2 |
| 6 | 100243 | KIT – sleeve & eyelet (1/4) | 4 |
| 7 | 114841 | NUT (1/4) | 4 |
| 8 | 114367 | HOSE (1/4 od x 35 ft lg) | A/R |
| 9 | 114380 | ELBOW – hose fitting (3/8) | 2 |
| 10 | 100242 | KIT – sleeve & eyelet (3/8) | 8 |
| 11 | 114941 | NUT (3/8) | 8 |
| 12 | 114372 | HOSE (3/8 od x 35 ft lg) | A/R |
| 13 | 554203 | CLAMP – hose | 2 |
| 13 | 555022 | SCREW – clamp | 2 |
| 13 | 552958 | FLATWASHER | 2 |
| 13 | 552959 | LOCKWASHER | 2 |
| 14 | 421404 | HEATER – fuel (12V) | 1 |
| 15 | 910960TKA | CLAMP – fuel heater | 1 |
| 16 | 1010362 | PUMP – injection (see 204G2) | 1 |
| 17 | 117433 | PUMP – fuel (see 142F8) | 1 |
| 18 | 927755 | BRACKET – fuel strainer | 1 |
| 18 | 558711 | * INSERT | 2 |
| 18 | 553018 | SCREW | 2 |
| 18 | 552086 | FLATWASHER | 2 |
| 18 | 551800TKA | LOCKWASHER | 2 |
| 18 | 100424 | KIT – fuel strainer | 1 |
| 19 | 130972 | * STRAINER – fuel | 1 |
| 20 | 334458 | ** GASKET – strainer | 1 |
| 21 | 130973 | ** SCREEN – strainer | 1 |
| 22 | 554515 | * CONNECTOR | 2 |
| 23 | 114959 | * ELBOW | 1 |
| 24 | 910372TKA | * CLAMP | 2 |
| 24 | 553462 | * SCREW | 2 |
| 24 | 552086 | * FLATWASHER | 2 |
| 24 | 551800TKA | * LOCKWASHER | 2 |
204G2
116787
212A6
261G3
