EVAPORATOR FAN GROUP

$13,142.93

Description :

A-0061

ref

part-no

Clear

A-0061

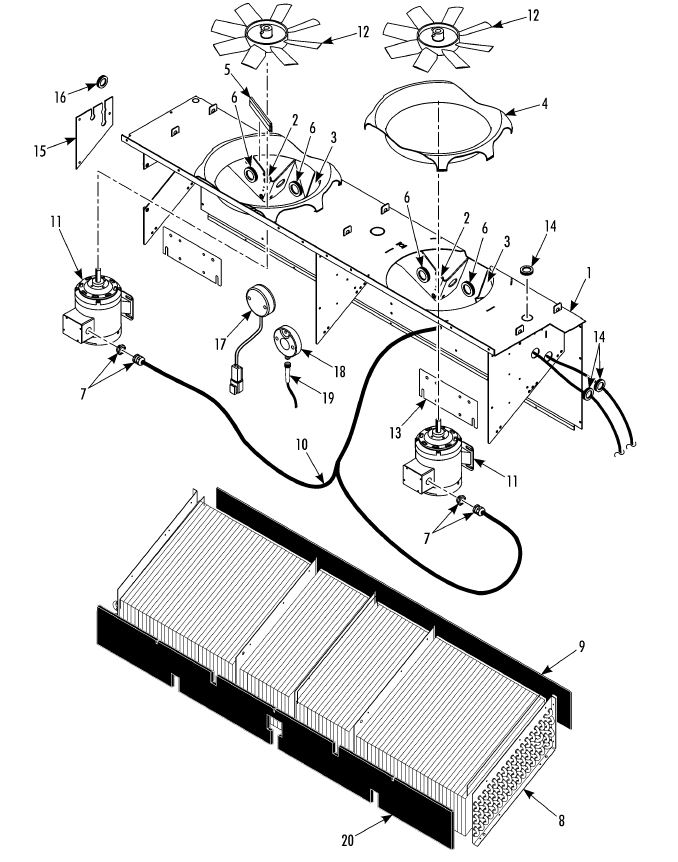

REF	PART NO.	DESCRIPTION	QTY
1	988242	HOUSING-evaporator(12in,312mm dia)	1
2	922779	BRACKET – motor (left)	2
3	922332	BRACKET – motor (right)	2
3	559162	RIVET – housing	10
4	781737	SHROUD – fan	2
5	333929	TRIM – edge guard	A/R
6	333917	GROMMET (1.180 in)	4
7	555900	CONNECTOR – harness & sensor	2
8	NSS	COIL – evaporator (see Refrigeration Group)	1
8	511447	SCREW – coil 10	10
8	559217	CAP – screw	3
9	919328	INSULATION – coil 1	1
10	413685	HARNESS – evaporator fan (w/ analog humidy sensor)	1
10	422605	HARNESS – evaporator fan (w/ digital humidy sensor)	1
11	1040691	MOTOR – fan	2
11	511869	SCREW – motor	8
11	511429	WASHER-SPLITLOCK	8
11	511444	WASHER-FLAT M8	8
11	511427	NUT-HEXSTOP	8
12	781683	FAN – evaporator (14 in, 355 mm dia)	2
13	918466TKA	BRACKET – motor 2	2
13	511869	SCREW – bracket	8
13	511444	WASHER-FLAT M8	8
13	511429	WASHER-SPLITLOCK	8
13	511427	NUT-HEXSTOP	8
14	335576	GROMMET (29 mm)	4
15	922775	COVER – tube	1
16	330367	GROMMET	4
17	422659	SENSOR – humidity	1
18	419836	SENSOR – humidity (RS 485, mP 4000 only)	1
18	420374	CABLE – supply (RS 485)	1
18	926966	INSULATION – coil	1
