ENGINE COOLING SYSTEM

$11,500.95

Description :

A-0200

ref

part-no

Clear

A-0200

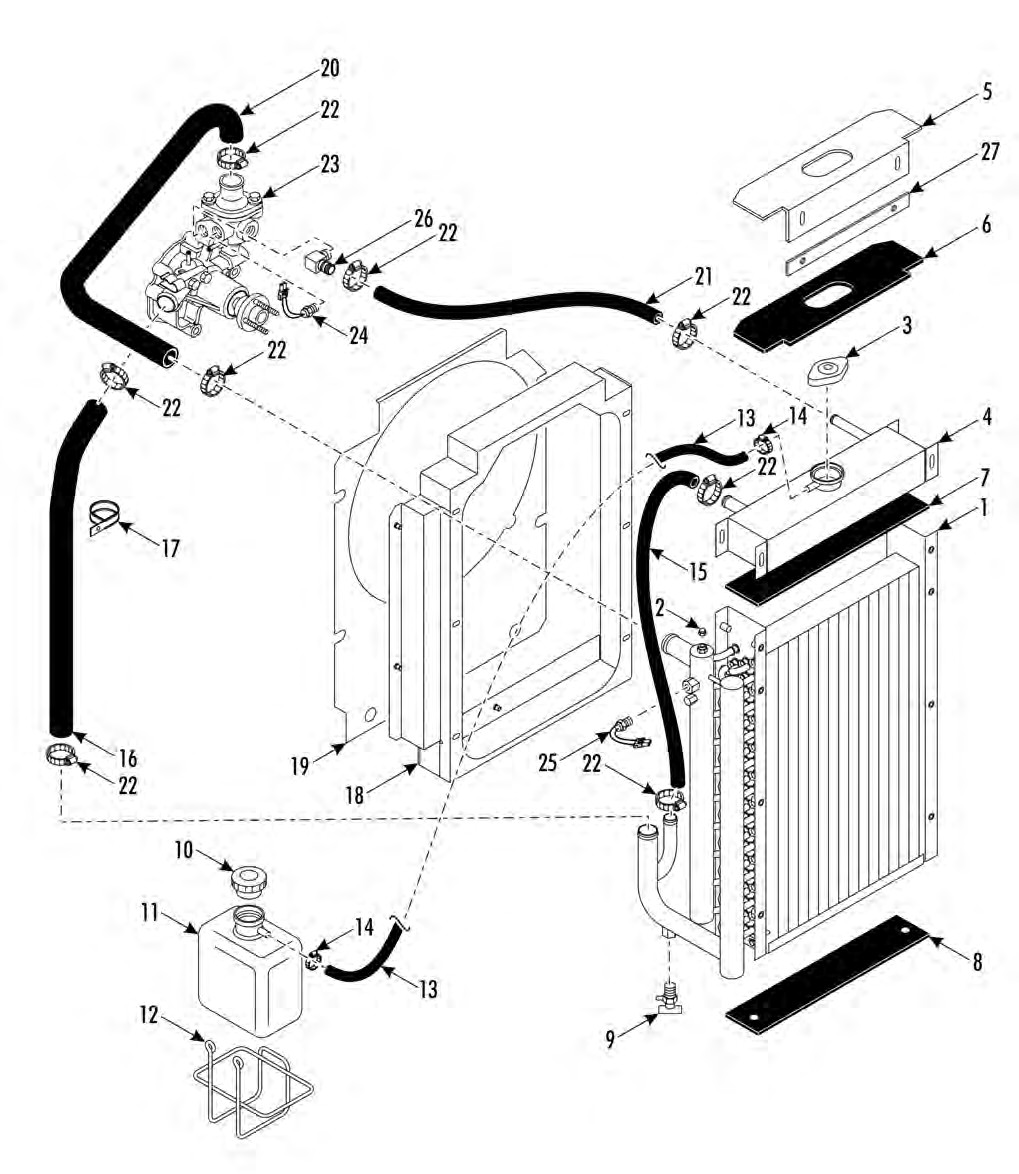

REF	PART NO.	DESCRIPTION	QTY
1	120810TKA	RADIATOR	1
2	551983	* CAP – vent	1
3	117983	CAP – radiator (steel)	1
3	118913	CAP – radiator (stainless steel)	1
4	118912	TANK – expansion	1
4	130668	TANK – expansion (Maersk blue)	1
4	553021	SCREW – tank	4
4	551800TKA	LOCKWASHER	4
4	552086	FLATWASHER	4
5	918039	BRACKET – radiator	1
5	925308	BRACKET – radiator (Maersk blue)	1
5	552957	SCREW – bracket	2
5	552945	WASHER	4
5	554953	NUT	2
6	918041	PAD – expansion tank	1
7	917782	PAD – radiator (top)	1
8	911834	PAD – radiator (bottom)	1
8	2030396	ADHESIVE – radiator pad	A/R
9	559011	COCK – drain (radiator)	1
10	998301	CAP & CHAIN – overflow tank (see 119E11)	1
11	114607	TANK – overflow	1
12	114693	HANGER – overflow tank	1
12	551587	SCREW – hanger	2
12	552086	FLATWASHER	2
12	554953	NUT	2
13	980771	HOSE – overflow (25 ft)	A/R
14	552796	CLAMP – hose	2
15	118891	HOSE – outlet	1
16	133299	HOSE – engine to radiator	1
17	553234	CLAMP – hose support	1
18	987353	SHROUD – radiator SGSM	1
18	987366	SHROUD – radiator (Maersk blue)	1
18	987365	SHROUD – radiator SGCM	1
18	556721	INSERT – threaded	6
19	987354	ORIFICE – radiator SGSM	1
19	987339	ORIFICE – radiator (Maersk blue)	1
19	987338	ORIFICE – radiator SGCM	1
19	552995	SCREW – orifice	6
19	554740	FLATWASHER	6
20	119524	HOSE – radiator to engine (top)	1
21	121095	HOSE – EPDM (3/8 x 25 ft)	A/R
22	553401	CLAMP – hose	8
23	132268	PUMP – water (ELC compatible, see 204F0)	1
24	416539	SENSOR – water temperature	1
25	411818	SENSOR – water level	1
26	558653	ELBOW	1
26	552539	BUSHING	1
27	927350	NUTSTRIP	7
