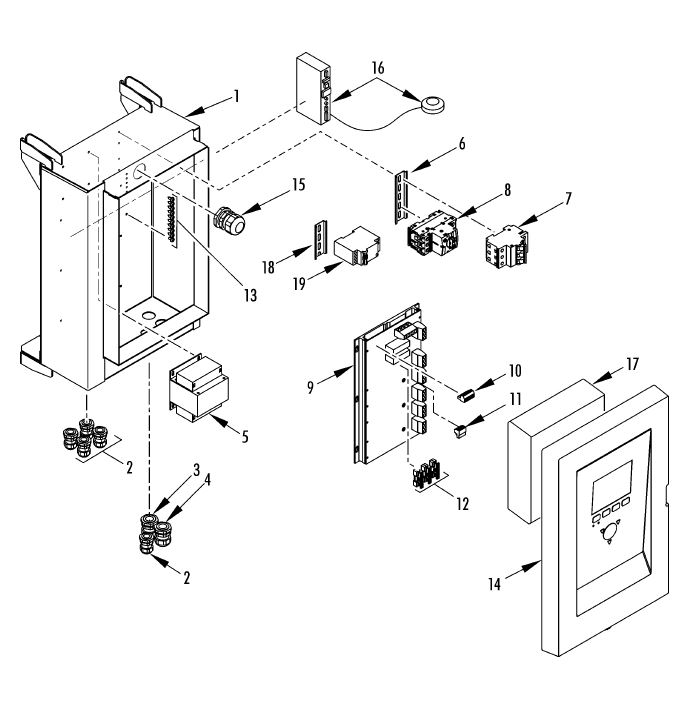

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 047225TKA | BASE – control box (mP-4000) | 1 |
| 1 | 931898 | * BOX – control | 1 |
| 2 | 555900 | * CONNECTOR – liquid tite (22.5 mm) | 5 |
| 3 | 555112 | * CONNECTOR – liquid tite (38 mm) | 1 |
| 4 | 555257 | * CONNECTOR – liquid tite (28 mm) | 1 |
| 5 | 418763 | * TRANSFORMER | 1 |
| 5 | 511419 | * NUT | 4 |
| 5 | 511872TKA | * FLATWASHER | 4 |
| 5 | 511270TKA | * STUD | 5 |
| 6 | 927635 | * RAIL – din | 1 |
| 6 | 511445 | * SCREW | 4 |
| 6 | 559485 | * FLATWASHER | 4 |
| 7 | 415104 | * BREAKER – circuit (25A) | 1 |
| 7 | 420352 | * BREAKER – circuit (adjustable, 25-32A) | 1 |
| 8 | 413605 | * CONTACTOR (CI 25) | 1 |
| 9 | 418719 | * MODULE – power (MP-4000) | 1 |
| 10 | 5040843 | * BLOCK – terminal (6 pole) | 1 |
| 11 | 413596 | * BLOCK – terminal (4 pole) | 1 |
| 12 | 419286 | * FUSE & COVER (20A, black fuse) | 3 |
| 13 | 510336 | * SCREW | 10 |
| 13 | 511873TKA | * LOCKWASHER | 10 |
| 14 | NSS | * DOOR – controller (see 235G3 or 259C6) | 1 |
| 14 | 934514 | NAMEPLATE – mP 4000 | 1 |
| 15 | 413686 | * CONNECTOR – liquid tite | 1 |
| 16 | NSS | GPS MODEM & ANTENNA (for OOCL, not supplied by Thermo King) | 1 |
| 16 | 929521 | BRACKET – GPS (for OOCL) | 1 |
| 16 | 510336 | SCREW – bracket | 4 |
| 16 | 559444 | WASHER – insulating | 4 |
| 17 | 401161 | KIT – RMM+ module (optional) | 1 |
| 18 | 919273 | RAIL – din | 1 |
| 19 | 422682 | BREAKER | 1 |
298F3
189B9
259C5
259A4
