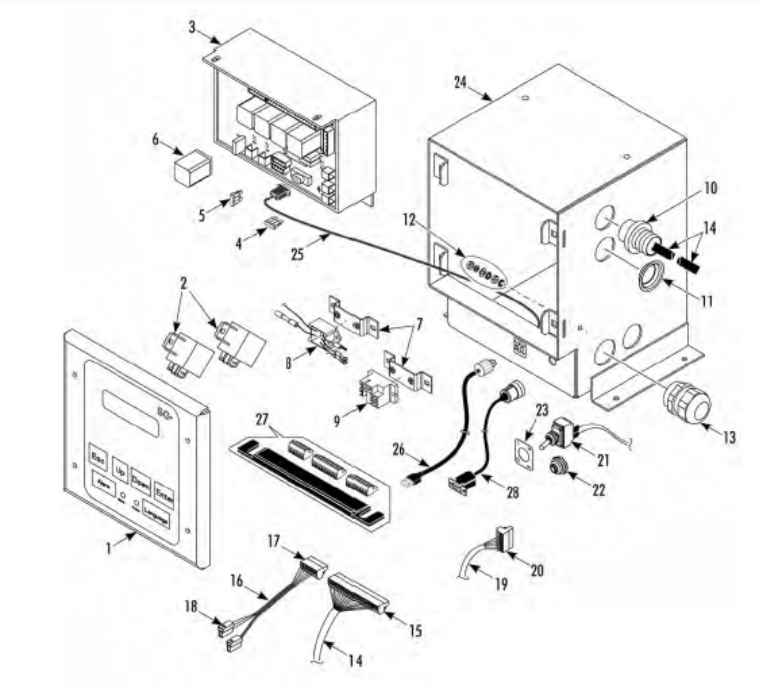

CONTROL BOX (1/17 & AFTER)

$13,782.15

Description :

A-0206

ref

part-no

Clear

A-0206

REF	PART NO.	DESCRIPTION	QTY
1	417841	KEYPAD & DOOR	1
1	931061	* NAMEPLATE – Keypad	1
1	928090	DOOR (less keypad)	1
1	554526	NUT – captive	4
2	417836	RELAY – power	2
3	452554	CONTROLLER	1
3	452554	CONTROLLER – SG 3000	1
4	411771	* FUSE (30A)	2
5	449758	* FUSE (10A)	1
6	417904	* RELAY	2
6	554953	NUT	4
6	552086	FLATWASHER	4
7	935685	BRACKET – opto isolator mount	2
7	559754	* INSERT	2
7	556036	SCREW	2
7	511399	LOCKWASHER	2
7	552201	FLATWASHER	2
7	935686	BRACKET (only for retrofitting)	1
8	422342	MODULE – opto coupler	1
8	557697	FLATWASHER	2
8	557665	NUT	2
9	421787	RELAY – quad	1
9	553013	FLATWASHER	2
9	555754	NUT	2
9	552201	FLATWASHER	4
10	553539	FITTING – barb	1
10	331056	O-RING	1
10	552636	NUT – fitting	1
11	511648	PLUG – button	1
12	552965	NUT – ground	2
12	552996	LOCKWASHER (int tooth)	2
12	552964	LOCKWASHER	1
12	552001	FLATWASHER	1
13	555112	CONNECTOR – harness grip	1
14	417837	HARNESS – main	1
15	413608	* CONNECTOR – plug (18-pin)	1
16	417838	HARNESS – relay	1
17	5040843	* CONNECTOR – plug (6-pin)	1
18	445219	* CONNECTOR – relay	2
19	423280	HARNESS – exciter	1
19	423281	HARNESS – exciter	1
20	417842	* CONNECTOR – plug (5-pin)	1
21	417835	HARNESS – switch	1
21	441196	* SWITCH – on/ off	1
22	440739	BOOT – switch	1
23	997642	NAMEPLATE – On/ Off	1
24	401405	BOX – control CM	1
24	401406	BOX – control SM	1
25	418064	HARNESS – download (PC board to box)	1
26	420575	ADAPTER – serial port to USB	1
27	401197	KIT – connectors (J1 & J4, replaces items 14 & 16)	1
28	2041040	HARNESS – download (9 pin to 5 pin)	1
29	418065	CABLE – download (5 pin to Serial)	1
