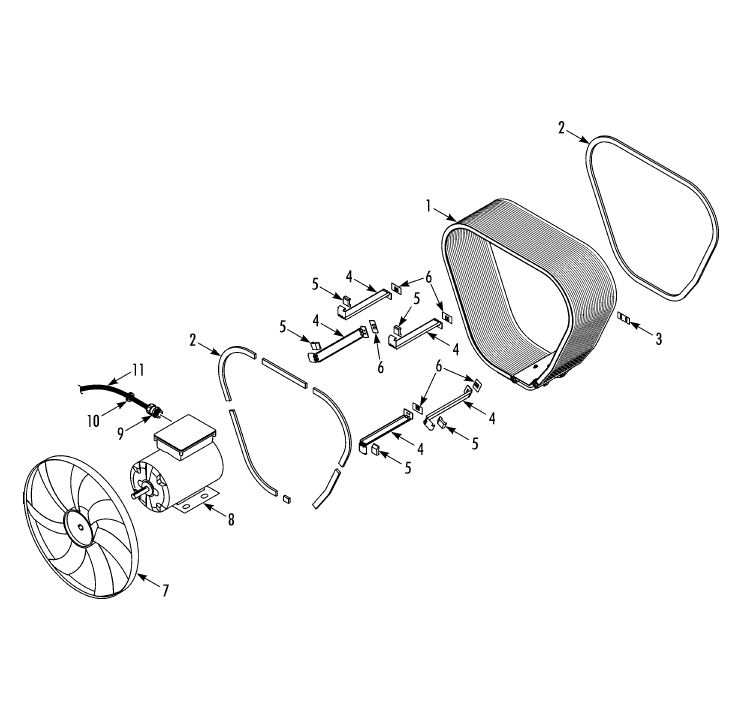

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 600310TKA | COIL – condenser (micro channel) 1 | 1 |
| 1 | 511442 | SCREW COIL | 2 |
| 1 | 511441 | FLATWASHER | 2 |
| 1 | 559054 | WASHER (NYLON) | 2 |
| 1 | 513166 | INSERT | 2 |
| 2 | 335607 | GASKET – coil | 2 |
| 3 | 934588 | INSULATOR | 1 |
| 4 | 934585 | BRACKET – condenser oil | 5 |
| 4 | 511442 | SCREW – bracket | 10 |
| 4 | 511441 | FLATWASHER | 10 |
| 4 | 559054 | WASHER (NYLON) | 10 |
| 4 | 513166 | INSERT | 10 |
| 5 | 934586 | MOUNT – epdm | 5 |
| 6 | 934587 | INSULATOR | 5 |
| 7 | 781924 | FAN – condenser | 1 |
| 8 | 1040759 | MOTOR – condenser fan (0.75hp) | 1 |
| 8 | 552324 | *KEY – Fan | 1 |
| 8 | 511443 | SCREW – motor | 4 |
| 8 | 511444 | WASHER-FLAT M8 | 8 |
| 8 | 511429 | WASHER-SPLITLOCK | 4 |
| 8 | 511427 | NUT-HEXSTOP | 4 |
| 9 | 555900 | GRIP – cable | 1 |
| 10 | 330367 | GROMMET | 1 |
| 11 | 412953 | HARNESS – condenser fan | 1 |
154E13
235G2
235G3
298F1
