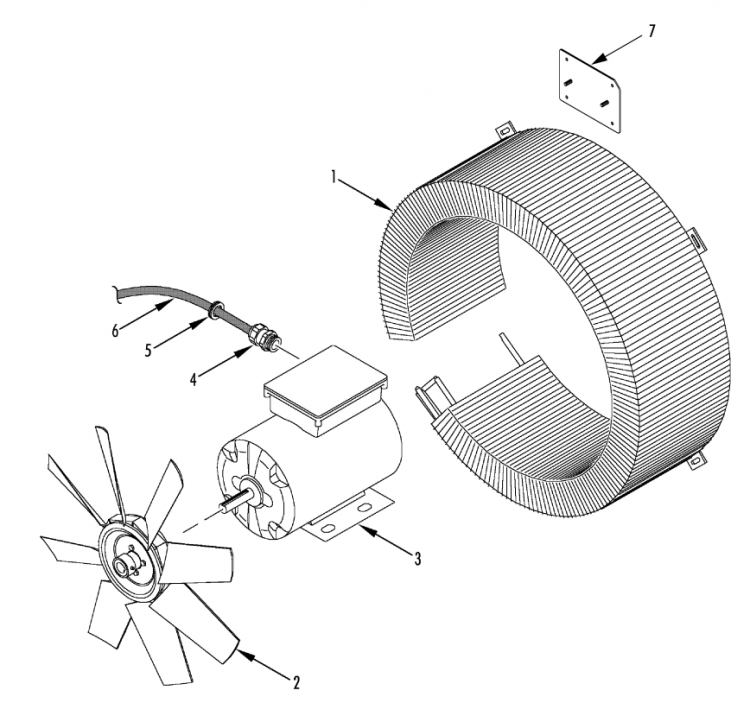

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 600285TKA | COIL – condenser | 1 |
| 1 | 332950 | GASKET (10 x 15mm) | A/R |
| 1 | 511442 | SCREW COIL | 7 |
| 1 | 511444 | WASHER-FLAT M8 | 7 |
| 1 | 559054 | WASHER (NYLON) | 7 |
| 2 | 781924 | FAN – condenser | 1 |
| 3 | 1040759 | MOTOR – condenser fan (0.75hp) | 1 |
| 3 | 552324 | *KEY – Fan | 1 |
| 3 | 771498 | * BEARING – shaft end | 1 |
| 3 | 771401 | * BEARING – opposite end | 1 |
| 3 | 511443 | SCREW – motor | 4 |
| 3 | 511444 | WASHER-FLAT M8 | 8 |
| 3 | 511429 | WASHER-SPLITLOCK | 4 |
| 3 | 511427 | NUT-HEXSTOP | 4 |
| 4 | 555900 | GRIP – cable | 1 |
| 5 | 330367 | GROMMET | 1 |
| 6 | 412953 | HARNESS – condenser fan | 1 |
| 7 | 902523 | KIT – condenser coil stud (set of three) | 1 |
180D0
154E13
189C2
173B6
