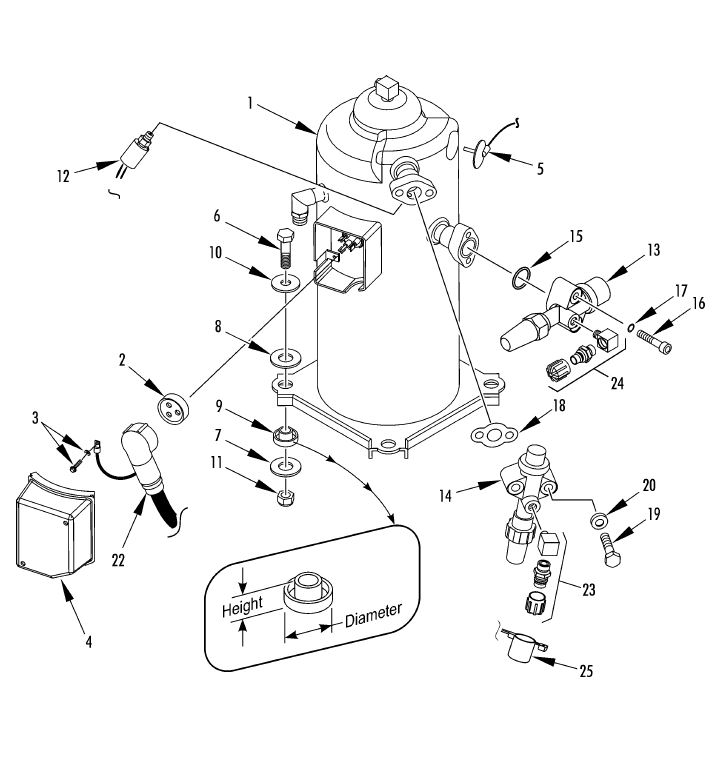

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 1020795 | COMPRESSOR – scroll | 1 |
| 1 | 2030964 | OIL – compressor (1L) | A/R |
| 1 | 400779 | KIT – gasket & grease | 1 |
| 2 | 332951 | * GASKET – power connector | 1 |
| 2 | 332979 | * SEALER – silicone grease pack | 1 |
| 3 | 558994 | * SCREW – ground | 1 |
| 3 | 558995 | * WASHER – ground | 1 |
| 4 | 919021 | COVER – terminal box | 1 |
| 5 | 401377 | KIT – thermistor | 1 |
| 6 | 511433 | SCREW – compressor | 4 |
| 7 | 511435 | FLATWASHER (12 mm) | 4 |
| 8 | 559012 | WASHER – vibration damper | 4 |
| 9 | 511432TKA | SPACER (1/03 – 3/10, height – 17.4, dia 34.3) | 4 |
| 9 | 512033TKA | SPACER (3/10 & after, height – 17.9, dia 34.3) | 4 |
| 10 | 511436 | FLATWASHER (13 mm) | 4 |
| 11 | 511434 | NUT | 4 |
| 12 | 421422 | SWITCH – hpco | 1 |
| 12 | 2030393 | SEALER – thread (red) | A/R |
| 13 | 612118 | VALVE – suction | 1 |
| 14 | 612119 | VALVE – discharge | 1 |
| 15 | 330727 | O-RING – suction | 1 |
| 16 | 511438 | SCREW – flange | 2 |
| 17 | 511429 | LOCKWASHER | 2 |
| 18 | 335215 | GASKET – valve (service) | 1 |
| 19 | 511437 | SCREW – discharge valve | 2 |
| 20 | 510358 | WASHER – sealing | 2 |
| 21 | 400782 | KIT – power cord | 1 |
| 22 | 667812 | ADAPTER – high side | 1 |
| 23 | 666610 | FITTING – highside | 1 |
| 23 | 667182 | * CAP – fitting | 1 |
| 24 | 668054 | ADAPTER – low side | 1 |
| 24 | 666607 | FITTING – low side | 1 |
| 24 | 667183 | * CAP – fitting | 1 |
| 24 | 2030393 | SEALER – thread (red) | A/R |
| 25 | 616629 | CAP – tamper evident (optional) | A/R |
298F2
235G4
189C4
