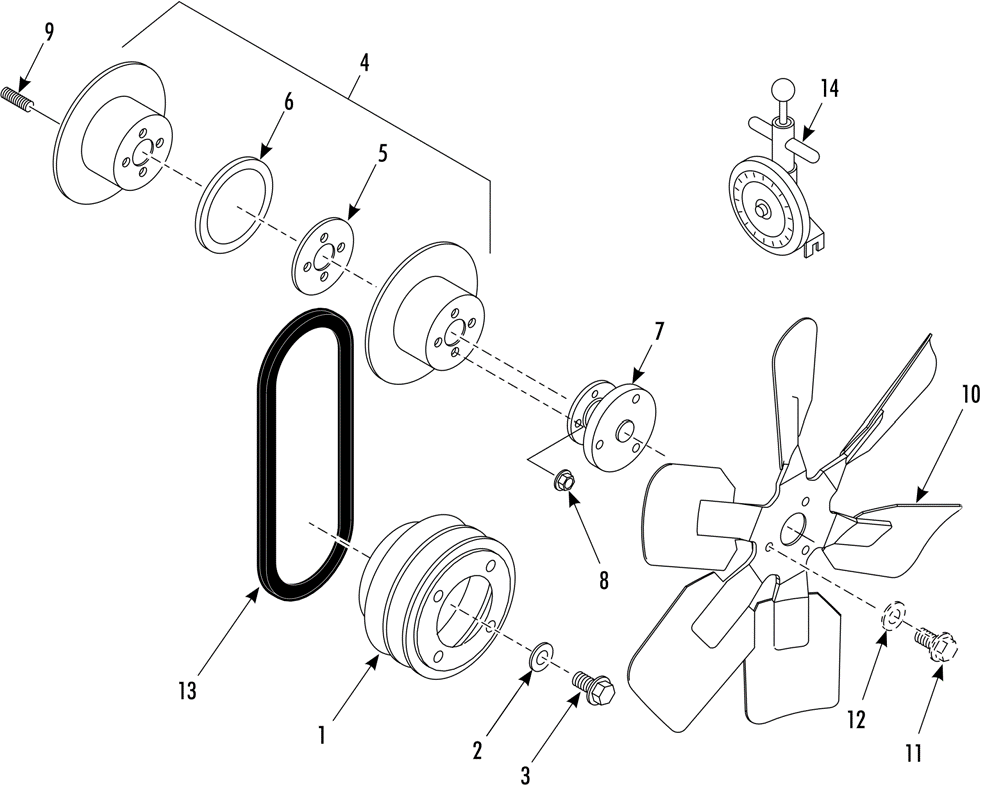

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 130353 | PULLEY – crankshaft (see 204F6) | 1 |
| 2 | 556249 | WASHER | 1 |
| 3 | 556250 | SCREW – pulley | 1 |
| 4 | 130358 | PULLEY – water pump (see 204F0) | 1 |
| 5 | 771427 | * SHIM – (1 mm) | A/R |
| 5 | 772752 | * SHIM – (0.5 mm) | A/R |
| 6 | 771428 | * SPACER | 1 |
| 7 | 900331TKA | KIT – fan spacer | 1 |
| 8 | 555792 | * NUT | 4 |
| 9 | 559828 | * STUD – fan spacer (water pump, 5 mm longer than std) | 4 |
| 10 | 781782 | FAN – radiator | 1 |
| 11 | 553834 | SCREW – fan (CGCO & SGCO) | 3 |
| 11 | 556764 | SCREW – fan (CGSM, SGSM, CGCM & SGCM) | 3 |
| 12 | 552959 | LOCKWASHER | 3 |
| 13 | 781968 | BELT – fan & water pump | 1 |
| 14 | 2040427 | GAUGE – belt tension | 1 |
2030733
209C4
8101394
12U26
