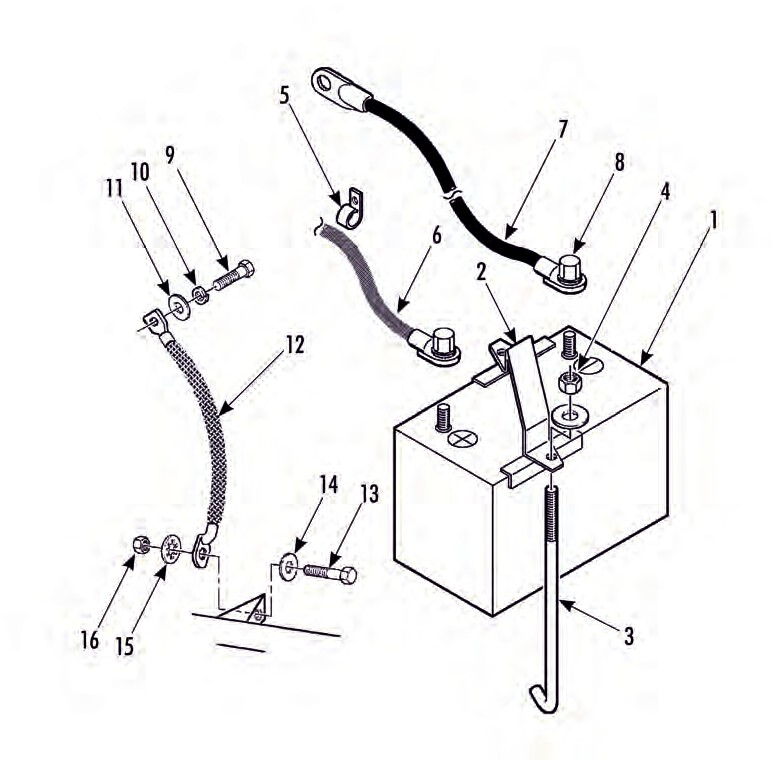

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 2030733 | BATTERY – maintenance free (950 CCA, threaded) | 1 |
| 1 | 2030732 | BATTERY – maintenance free (950 CCA, post) | 1 |
| 1 | 926531 | NAMEPLATE 950 CCA Battery | 1 |
| 2 | 999312 | STRAP – battery holddown | 1 |
| 3 | 916288 | ROD – holddown | 2 |
| 4 | 554953 | NUT – rod | 2 |
| 4 | 552086 | FLATWASHER | 2 |
| 4 | 550698 | LOCKWASHER | 1 |
| 5 | 552240 | CLAMP – cable | 1 |
| 6 | 447511 | CABLE – battery (positive, 48 in lg, threaded) | 1 |
| 6 | 417018 | CABLE – battery (positive, 36 in lg, post) | 1 |
| 7 | 447782 | CABLE – battery (negative, 19 in lg, threaded) | 1 |
| 7 | 417019 | CABLE – battery (negative, 19 in lg, post) | 1 |
| 8 | 554436 | * NUT – cable | 2 |
| 9 | 555695 | SCREW – strap to engine | 1 |
| 10 | 553672 | LOCKWASHER | 2 |
| 11 | 550402 | FLATWASHER | 2 |
| 12 | 441644 | STRAP – ground (13.5 in lg) | 1 |
| 13 | 552969 | SCREW – strap to frame | 1 |
| 14 | 553066 | LOCKWASHER (internal tooth) | 2 |
| 15 | 552086 | FLATWASHER | 2 |
| 16 | 552114 | NUT | 1 |
