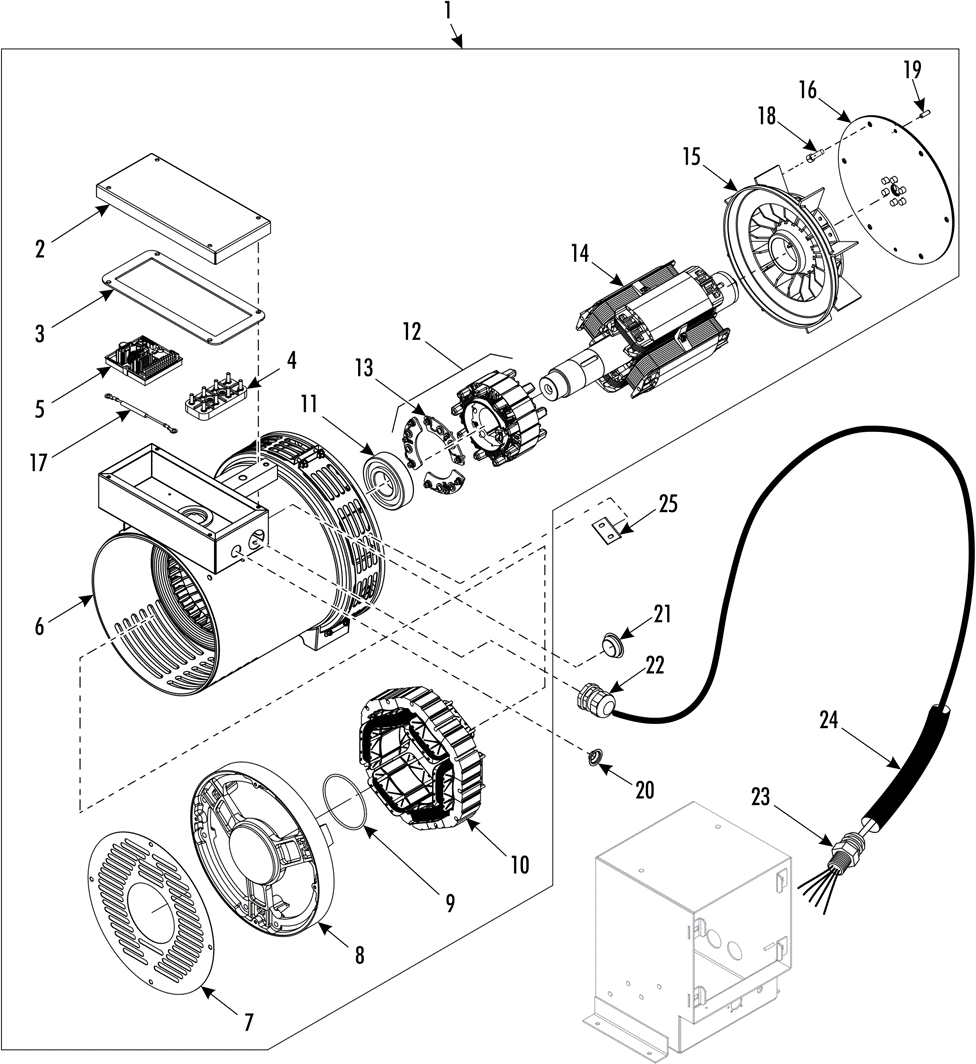

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 401332 | ALTERNATOR | 1 |
| 2 | NSS | * COVER | 1 |
| 3 | 335160 | * GASKET – cover | 1 |
| 4 | 421275 | * BOARD – terminal | 1 |
| 5 | 421257 | * REGULATOR DSR | 1 |
| 5 | 421524 | ** FUSE (5A) | 1 |
| 6 | NSS | * FRAME & MAIN STATOR | 1 |
| 7 | NSS | * SEAL – rear | 1 |
| 8 | NSS | * BRACKET – end | 1 |
| 9 | 335161 | * O-RING | 1 |
| 10 | NSS | * EXCITER – stator | 1 |
| 11 | 773115 | * BEARING – rear | 1 |
| 12 | NSS | * EXCITER & RECTIFIER – rotor | 1 |
| 13 | 421276 | ** DIODE assembly | 3 |
| 14 | NSS | * ROTOR | 1 |
| 15 | NSS | * FAN | 1 |
| 16 | NSS | * DISC – flex | 1 |
| 17 | 422831 | HARNESS – resistor | 1 |
| 18 | 513313 | SCREW – flex disk to flywheel | 6 |
| 18 | 552959 | LOCKWASHER | 6 |
| 18 | 552958 | FLATWASHER | 6 |
| 19 | 559497 | PIN – dowel | 2 |
| 20 | 510125 | PLUG (black) | 1 |
| 21 | 929625 | CAP – plug | 1 |
| 22 | 555112 | CONNECTOR – harness grip | 1 |
| 23 | 553539 | FITTING – barb | 1 |
| 23 | 331056 | O-RING | 1 |
| 23 | 552636 | NUT | 1 |
| 24 | 985035 | HOSE – harness (cut to 26.0 inches) | A/R |
| 25 | 935684 | BRACKET – harness tiedown | 1 |
222D2
212A7
204F5
236E0
