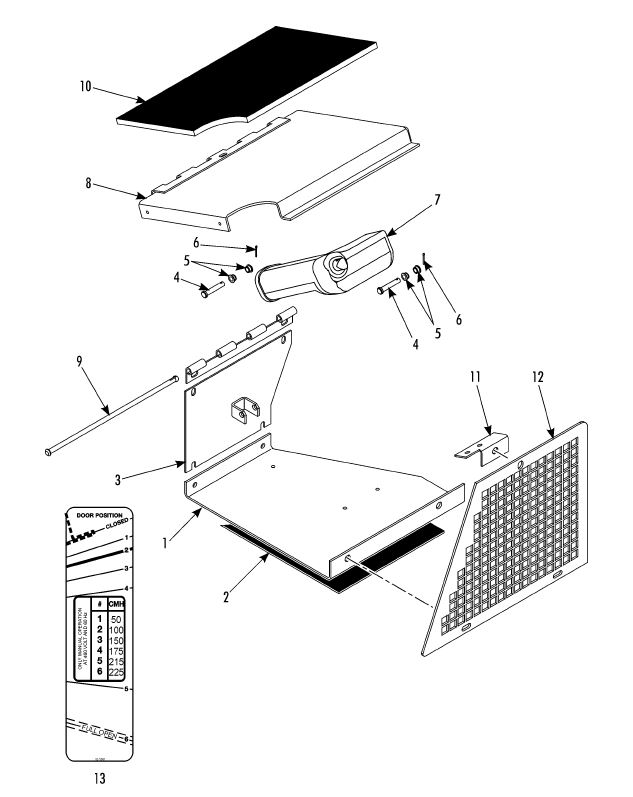

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 929522 | BRACKET – air vent | 1 |
| 1 | 557035 | SCREW – bracket | 2 |
| 1 | 510619 | WASHER – insulator | 2 |
| 2 | 333264 | GASKET | 1 |
| 3 | 929523 | BRACKET – rear | 1 |
| 3 | 511445 | SCREW – bracket | 2 |
| 3 | 511464 | FLATWASHER | 2 |
| 3 | 559054 | WASHER – insulator | 2 |
| 4 | 511496 | PIN – clevis | 2 |
| 5 | 772870 | BEARING | 4 |
| 6 | 552550 | PIN – cotter | 2 |
| 7 | 417238TKA | ACTUATOR | 1 |
| 8 | 925687 | DOOR – AFAM | 1 |
| 9 | 929524 | PIN – hinge | 1 |
| 10 | 333265 | GASKET – air vent | 1 |
| 11 | 920416 | BRACKET – grille | 1 |
| 11 | 511445 | SCREW – bracket | 2 |
| 11 | 559054 | WASHER – insulator | 2 |
| 11 | 511464 | FLATWASHER | 2 |
| 12 | 929525 | GRILLE – fresh air | 1 |
| 12 | 511422TKA | SCREW – grille | 3 |
| 12 | 510619 | WASHER – insulator | 3 |
| 13 | 925661 | LABEL – AFAM door position | 1 |
235E9
235E0
247C9
235G5
