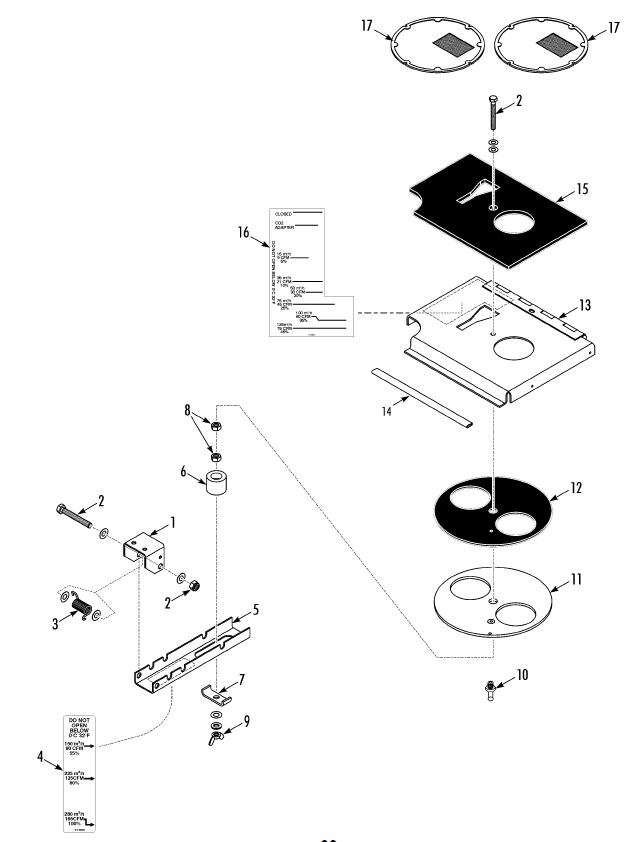

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 918252TKA | VENT – air (complete) | 1 |
| 1 | 919048 | * BRACKET – air vent handle | 1 |
| 2 | 511426 | * SCREW – handle | 2 |
| 2 | 511427 | * NUT | 1 |
| 2 | 559541 | * WASHER – nylon | 4 |
| 3 | 918100 | * SPRING | 1 |
| 4 | 920440 | * NAMEPLATE – Do Not Open Below 0 C | 1 |
| 5 | 918102 | * HANDLE – air vent | 1 |
| 6 | 772467 | * BEARING – slide | 1 |
| 7 | 918104 | * BRACKET – air vent handle | 1 |
| 8 | 511428 | * NUT | 2 |
| 8 | 511429 | * LOCKWASHER | 1 |
| 9 | 511431TKA | * NUT – wing | 1 |
| 10 | 559168 | * FITTING – barb | 1 |
| 10 | 558933 | * WASHER – nylon | 1 |
| 11 | 918103 | * DISK – air vent | 1 |
| 12 | 334255 | * GASKET – air vent | 1 |
| 13 | 918105 | * PLATE – air vent (complete) | 1 |
| 13 | 920411 | ** HINGE – air vent | 1 |
| 13 | 929524 | ** PIN – hinge (w/ snap) | 1 |
| 14 | 918663TKA | ** PROTECTOR – edge | 1 |
| 15 | 332944 | ** GASKET – air vent | 1 |
| 15 | 511442 | * SCREW – plate to frame | 2 |
| 15 | 511441 | * WASHER – nylon | 2 |
| 15 | 510619 | * WASHER – nylon | 2 |
| 16 | 919831TKA | * NAMEPLATE – Air Vent Door | 1 |
| 17 | 930274 | SCREEN – Med fly (3 x 3 mm opening) | 2 |
| 17 | 926863 | SCREEN – Med fly (1.3 x 1.3 mm opening) | 2 |
| 17 | 512308 | SCREW – screen | 8 |
154E13
235G3
259A4
189C4
