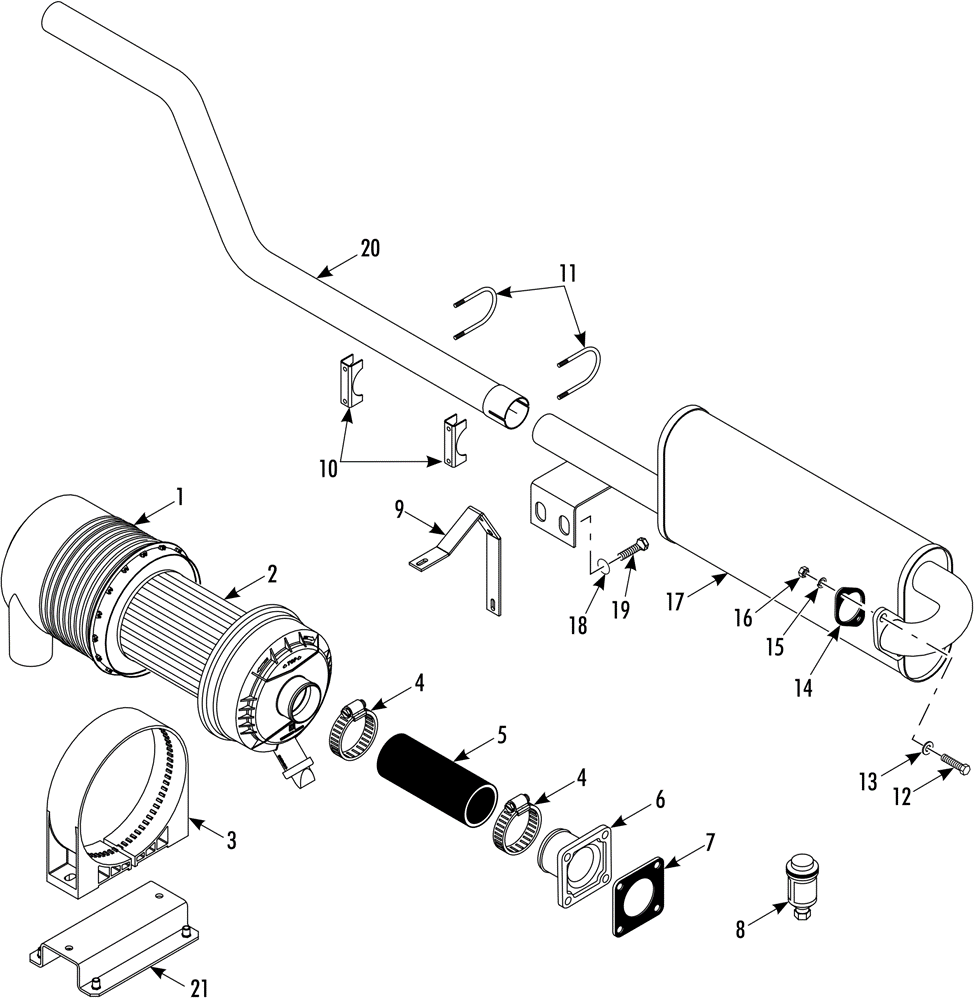

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 119299 | CLEANER – air | 1 |
| 2 | 119300 | * ELEMENT – air cleaner | 1 |
| 3 | 920861 | CLAMP – air cleaner | 1 |
| 3 | 553490 | SCREW – clamp | 2 |
| 3 | 552958 | FLATWASHER | 2 |
| 3 | 552959 | LOCKWASHER | 2 |
| 3 | 552114 | NUT | 2 |
| 4 | 559568 | CLAMP – hose | 2 |
| 5 | 132567 | HOSE – air cleaner | 1 |
| 5 | 130657 | HOSE – air cleaner (with spring) | 1 |
| 6 | 119266 | INLET – intake manifold (see 204F7) | 1 |
| 6 | 556191 | SCREW – elbow | 4 |
| 7 | 332764 | GASKET – elbow | 1 |
| 8 | 117757 | INDICATOR – air restriction | 1 |
| 8 | 117828 | FITTING – indicator | 1 |
| 9 | 119328 | BRACKET – exhaust tube | 1 |
| 9 | 552963 | SCREW – bracket | 2 |
| 9 | 552959 | LOCKWASHER | 2 |
| 9 | 552958 | FLATWASHER | 2 |
| 10 | 917233 | SADDLE | 3 |
| 11 | 917234 | U-BOLT | 3 |
| 11 | 551801 | NUT | 6 |
| 11 | 551800TKA | LOCKWASHER | 6 |
| 11 | 552086 | FLATWASHER | 6 |
| 12 | 553089 | SCREW – muffler | 2 |
| 13 | 552173 | FLATWASHER | 2 |
| 14 | 332314 | GASKET – exhaust | 1 |
| 15 | 552959 | LOCKWASHER | 2 |
| 16 | 552114 | NUT | 2 |
| 17 | 120804 | MUFFLER (stainless steel) | 1 |
| 18 | 555579 | SCREW – muffler | 2 |
| 19 | 552959 | LOCKWASHER | 2 |
| 19 | 552958 | FLATWASHER | 2 |
| 20 | 119337 | TUBE – exhaust | 1 |
| 21 | 925370 | BRACKET – air cleaner | 1 |
4040153
226E2
314H4
114665
