MAGNUM

AFAM MP3000 (OPTION 098166)

$3,069.27

Description :

A-0011

ref

FULL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

part-no

Clear

A-0011

Product Details

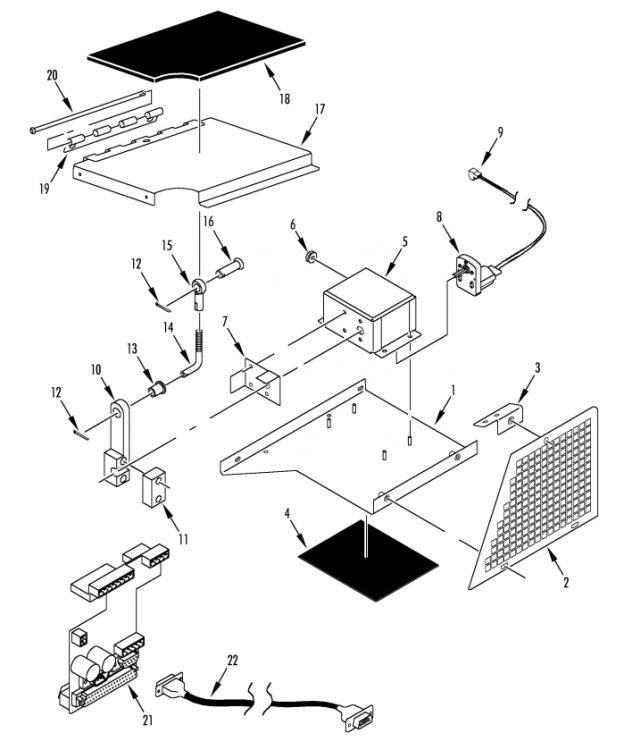

REF	PART NO.	DESCRIPTION	QTY
1	920412	BRACKET – motor box	1
1	557172	SCREW – bracket	2
1	557075	FLATWASHER	2
1	510619	WASHER – insulator	2
2	920415	GRILLE – fresh air	3
2	557172	SCREW – grille	3
2	557075	FLATWASHER	3
2	510619	WASHER – insulator	1
3	920416	BRACKET – receptacle	2
3	557172	SCREW – bracket	1
4	333264	GASKET – receptacle (10 x 10)	1
5	920414	HOUSING – motor	4
5	557404	LOCKWASHER	4
5	557033	FLATWASHER	4
5	557367	NUT	1
6	330314	GROMMET	1
7	920413	BRACKET – mechanical stop	1
7	557862	SCREW – bracket	4
7	2030393	SEALER – thread	A/R
8	413674	MOTOR – damper (24VDC)	1
9	412832	CONNECTOR – plug (2-pin)	1
10	920418	LINKAGE [Ask for Quote]	1
11	920417	LINKAGE	1
11	557027	SCREW – linkage	2
11	557075	FLATWASHER	4
11	557042	NUT	2
12	553537	PIN – cotter	2
13	559338	WASHER – shoulder	1
14	920419	ROD – linkage [Ask for Quote]	1
15	114929	BALL JOINT	1
15	925521	BALL JOINT [Ask for Quote]	1
16	559437	RETAINER – pin	1
17	920420	VENT – air	1
18	333265	GASKET – air vent	1
19	920411	HINGE – plate [Ask for Quote]	1
20	918106	PIN – hinge (w/ snap)	1
21	413583	BOARD – interface (AFAM+)	1
22	413584	CABLE – AFAM/AFAM+	1
